This is pictorial from one
that's gone in Davy Jones locker. Built as one of biggest of her time she was the pride and glory of San Diego fisherman of Dalmatian ancestry, when purchased. She was build as Apollo and she sunk as Adriatic Sea. After batting the Oceans for a years at the time, she will be send in the ship yard where all will be pulled out. I am not sure but its
looklike as
Jurong Singmarine Shipyard dry dock in
Singapore.

After
entering dry dock all water will be pumped out , back in ocean and she will lay supported by wooden blocks high and dry. At that time anchor will be
payed out and all anchor chain , complete will be send to send blasting and couple of poor bastards will be send in chain locker to chip the
roost away.
That's one of dirtiest jobs in shipyard.

At same time sand blasting crew will
attack with sand blasters from all sides and eliminate all sea growth and barnacles that catch for the hull in paste years.That is a nasty job and one must have full body protection to do that.

Hydraulic system was updated and hoses replaced. This upgrade
allows for faster
pursing of the cables and speed with this one has increased from one and a half hour to 45 minutes only. New
hydraulic was also requiring new piping as well.

Deck cranes were unloaded and send in to the shop for complete dismantling and repair of hydraulic rams and seal, as well as all fittings. Special care was taken to all crimp on fittings were enclosed in grease tape to protect from further
corrosion.

Quick release hooks on the bow of the skiff were replaced for bigger and stronger one.

Cooling piping was
disassembled and send blasted inside and out, gauged and replaced if needed.

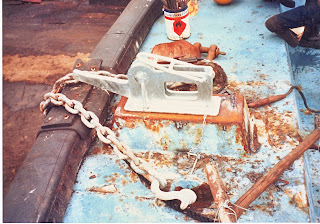

Anchor winch was also renovated,
fixed, painted, base bolts replaced and installed ready to accept
freshly blasted and painted anchor chain and anchor.

Hydraulic motor drive require a lots of space and was
squeezed in some empty spaces. This did not
allowed lots of space for maintenance.

Pneumatic clutch was overhauled also.

She was the beauty with
twin screws
that were cleaned up .
Skiff stern , slides and edges were reinforced and welded as this place get abused
very harshly.

Brine system was overhauled and new sections installed.

New rubber
pedros were inserted in piping as to prevent rupture during unloading wit Seal bombs in use.

Heat exchangers were
open and cleaned
thoroughly.

In the evening she sails in sunset.


It is enough of this mess , lets go fishing, this place is good to make sane man crazy.

Dry dock filling up.


In Guam under company office getting ready to sail again.


To all whom build her and/or have
any connection wit her:
Please send me pictures, data, info , story from her decks.
Last I heard to she pull her own shaft out with pursing winch and sunk someplace South West of Papua New Guinea.
Also story of her final trip will be appreciated.
I LOVE THESE OLD PHOTOS , DO YOU HAVE ANY OTHER BOATS
ReplyDeletemoj mail je jadranka2311@gmail.com ili skype sunshine.2311
ReplyDeletemolim te javi mi se
Thanks for comments . I am searching for back stories of this fishing vessels.
ReplyDeleteIll do my best to provide more of the pictures from my archive. But I am sorry I am limited with time. So when ever I get some ill posted .
Please if you get some info on vessels I publish let me know.
Thanks again.
Pacificus
I worked on the Apollo when it first came down to NZ, and half filled the slow boat that summer and unloaded in Pagopago.
ReplyDeleteIt had one large skiff and a smaller one, both being released almost simultaneously.
Talk about a memory trip for me.
Unfortuanetly photos were difficult to take and the few I have are the old fashion "Kodak film" era photos.
One day when I become more computer savvy and time I must try to get them into a computer system.
Will
